AXIOME robotic 3D printing machines

AXIOME designs and creates robotic additive manufacturing machines. Robotic 3D printing has many applications. It adds to the advantages of the printing process, the flexibility and agility of a polyarticulated robot. This therefore opens up the possibilities of large-scale printing without size or geometry limits.

The technology used in our applications is that of metal deposition (Metal Laser Deposition). The beads of material, in the form of wire, are melted using laser heating. Wire comes in coils of stainless steels (316L, 308L, 304L), titanium (Ti6Al-4V), base steel (ER70S), inconel (In718) or copper and others...

Our expertise

AXIOME offers turnkey solutions.
The proposed heads make it possible to achieve the following performances:

  • Bead height: from 0.3mm to 1.2mm.
  • Cord thickness: from 0.8mm to 1mm.
  • The classic deposition rate: from 0.1 to 1 kg/h.
  • Process control that reads and verifies data from various sensors such as voltage, current and force applied to the wire.
Tete de fabrication additive 3D

The AGIL range of additive manufacturing machines developed by AXIOME

Version One

This machine is composed of a 6-axis robot on a plateform, integrating the head and its peripherals, all in a secure enclosure adapted to the laser printing process. This configuration allows the printing of small, simple 3D parts.

More info +

Version Flex

In this configuration, the machine is made up of a 6-axis robot on a plateform, integrating the head and the peripherals. The robot works on a positioner with 2 additional rotation axes in order to have total flexibility.

More info +

Version Large

In this configuration, the machine is made up of a 6-axis robot on a plateform, integrating the head and the peripherals. The robot is placed on a linear axis to print very large parts.

More info +

ADDITIVE MANUFACTURING APPLICATION EXAMPLES

Fabrication additive

Part with interior cavities, completely or partially hollowed. This technology saves weight and places reinforcements only where necessary.

Tubulure en fabrication additive 3D

Nested pipes: additive manufacturing allows the production of complex shapes, very difficult to achieve with other technologies.

Pales en metal fabrication additive

Blade manufacturing: large manufacturing flexibility with easy adaptation to a wide range of parts.

lunette de montre en impression 3D

Additive manufacturing makes it possible to carry out mass production, in particular for the medical, aeronautical, transport and watchmaking sectors. Here is an example with watch cases.

Impression additive metalique

Metal deposition by laser

Laser Metal Deposition is a Directed Energy Deposition (DED) process that works by precisely stacking layers of weld beads, in wire form, as they are introduced into the laser-generated meltpool.

The possibilities of creating parts are immense. It is possible to design small custom parts, complex high performance parts as well as sophisticated designs.

Choosing an additive manufacturing machine

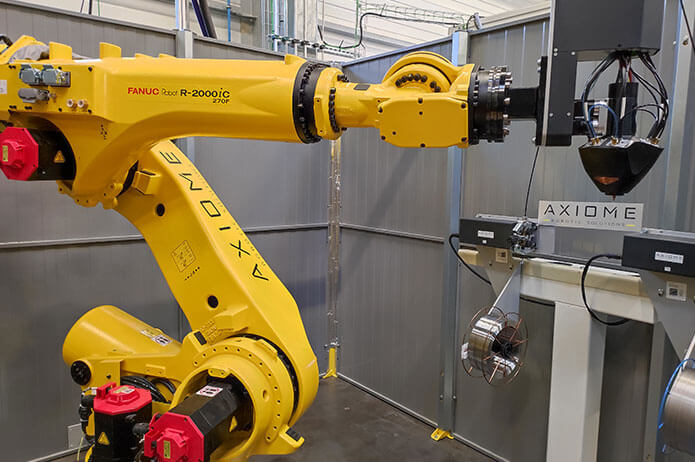

ROBOTIC 3D PRINTING

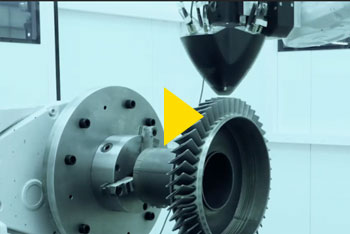

video fabrication-additive.jpg

0% MATERIAL waste

The multi-laser metal deposition process enables the wire to enter the meltpool coaxially and efficiently using 100% of the material, unlike other processes which have up to 50% material waste that cannot be recycled.

ask for more

CoNTROLLED PROCESS

The wire-arc process is by nature out of control. For the past 20 years a lot of overhead has been required to stabilize the process through scanners and thermal cameras. Here the wire enters the meltpool coaxially and melts at the point of contact with the substrate.

ask for more

More additive manufacturing machines videos are available on our YouTube channel!
